This video illustrates the steps to assemble / set up your LED sign after removing the sections from the crate.
Align the LED Sign Sections

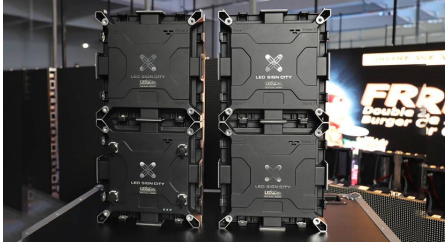

After unpacking your X Series LED Sign, arrange your sign cabinets in sequence so that a clear hole aligns with threaded hole.
Insert The Bolts

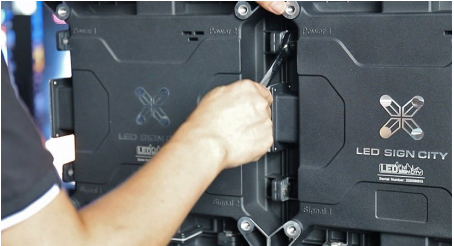

Insert the bolt through the clear hole and screw it into the threaded hole to hold the signs in position. Each cabinet has two holes on the side.
Fasten the Bolts

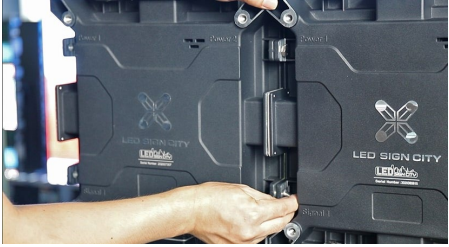

Use the provided socket to fasten the upper and lower bolts on the side each cabinet.
Attach the X Clip

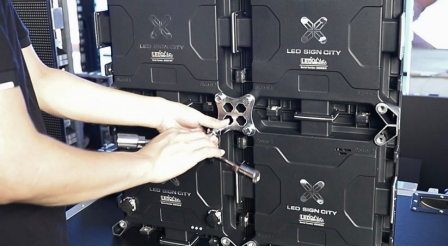

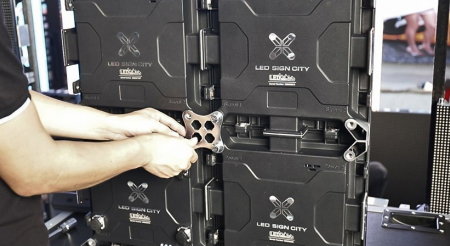

Place the X Clip in the center of every four cabinets and screw in the bolts to hold the clip in position.
Install the Mounting Brackets

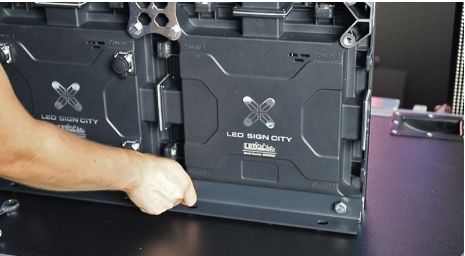

Position the brackets on the back of the sign and use the provided bolts to secure the brackets to the sign (Connect brackets as needed for install).
Lock Sign Sections together
Your LED Sign may arrive in preconfigured sections that you are required to connect together to assemble the required dimensions. Below we will walk you through the steps required to assemble your display and prepare for installation.
Illustration of Complete Assembly
Your assembled sign should resemble the illustration above.
